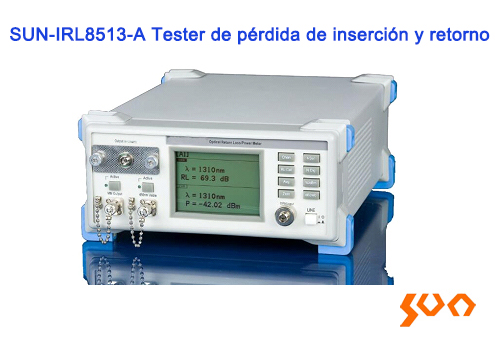

Posición: La página inicial > Productos > Equipo de Prueba > Tester de pérdida
1310 ⁄ 1550 (RL), FC ⁄ APC; 850 ⁄ 1310 ⁄ 1550 (IL), FC ⁄ SC ⁄ ST
Parameters | Specification |
Optical Return Loss Test | |
Test Wavelength (nm) | 1310/1550 (±10nm) |
Optical Connector Type | FC/APC |
Return Loss Test Measurement Range (dBm) | 0~75 |
Output Stability of Laser Source (dB/h) | ±0.005 (@25°C) |
Measurement Accuracy (dB) | 0.25 |
Resolution (dBm/dB) | 0.1 |
Optical Insertion Loss Test | |
Optic Connector (Power Meter) | FC/SC/ST Universal 2.5mm /1.25mm adaptors |
Calibrated Wavelength (nm) | 850/1310/1550 |
Measurement Range | +3 ~ -80 |
Measurement Accuracy (dB) | 0.25 |
Display Resolution (dB) | 0.001 |
Testing Modes | Linearity/Non-Linearity |
General Specification | |
Display | Color LCD screen |
Power Supply (V) | AC 100-240 |
Operation Temperature (°C) | -5~55 |
Dimensions (mm) | 260(L) x 265(W) x 140(H) |
Weight (kg) | 3 |
No. | Product | Unit | Quantity |
1 | Insertion and Return Loss Tester | set | 1 |
2 | Power Line | piece | 1 |
3 | Adapter (FC/SC/ST/2.5mm Universal, 1.25mm Universal) | set | 1 |
4 | FC/APC-FC/PC SM SX Patch Cord | piece | 1 |
5 | FC/APC-FC/APC SM SX Patch Cord | piece | 1 |
6 | Cleaning Cotton Swab | pack | 1 |
7 | Wrapping Stick | piece | 1 |
Model | Name | Description |
SUN-IRL851315 | Insertion and Return Loss Tester | Return Loss: 1310/1550nm, 0~75dB, FC/APC; Multimode Light Source: 850nm, FC/PC; Insertion Loss: 850/1310/1550nm, +3~ -80dBm, FC/SC/ST/2.5mm universal/1.25mm universal (only insertion loss for multimode) |
