Different interface optional, Easy operation, Low insertion loss
| Parameters | Specifications | ||
| Fiber Type and Ferrule Interface Type | MM | SM | |
| UPC | APC | ||
| Return Loss (dB) | ≥35 | ≥50 | ≥60 |
| Insertion Loss (dB) | ≤0.3 | ≤0.3 | ≤0.3 |
| Connector Type | FC, ST, SC, LC, MU, MTRJ, SMA, ESC, MPO | ||
| Fiber Cores | Simplex or Duplex | ||
| Fiber Jacket | PVC, LSZH or customize | ||
| Cable Length | 1m, 3m, 10m, 30m, or customize | ||
| Insert-pull Times | 1000 times | ||
| Repeatability (dB) | ≤0.1 | ||
| Tensile Strength (N) | 70 (SC,FC,LC)/50 (ST) | ||
| Operating Temperature (℃) | -40~ +85 | ||
SUN-A-B-C-D-E-FG
| A | B | C | D | E | F | G |
| Connector | Length | Connector | Fiber Type | Core | Diameter of jacket | Material of jacket |
| SC：SC/UPC FC：FC/UPC ST：ST/UPC LC:LC/UPC ASC：SC/APC AFC：FC/APC ALC:LC/APC |
1M：3m 2M：2m customed |
SC：SC/PC FC：FC/PC ST：ST/PC LC:LC/PC ASC：SC/APC AFC：FC/APC ALC:LC/APC |
SM：SM G652D SMA1：SM G657A1 SMA2：SM G657A2 OM1：MM 62.5/125um OM2：MM 50/125um OM3-300：OM3-300（50/125um） OM4：OM4（50/125um） |
SX：Single core D1X：Duel core（figure 8） D2X：Duel core（zipcord） |
3：3mm 2：2mm 0.9:0.9mm |
P：PVC L：LSZH |
SUN-ODB-RM2C Caja Terminal de Fibra Óptica
Modelo: SUN-ODB-RM2C
Used in CO as a cable termination 19-inch Rack mount sliding type
Features
Estructura estándar de 19 pulgadas Diseño de deslice, montaje en rack Panel de adaptador FC cuadrado/SC/DSC/ST
SUN-ODN-JZ Caja de Distribución de Fibra Óptica
Modelo: SUN-ODN-JZ
Outdoor, 1 1:16 or 2 1:8 splitters, Max adaptors: 16 ⁄ 24, SC, DLC adaptor
Features
Grado de protección IP65 Anti-humedad, anti-agua y anti-envejecimiento Montaje de pared interior o exterior Panel de adaptador SC Conector rápido aplicable Adecuado para un splitter PLC 1x16 o dos splitters PLC 1x8
SUN-AD Fiber Optic Adaptors
Modelo: SUN-AD
The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
Features
Different interface optional Easy operation Low insertion loss Reuse for single / multimode fiber
SUN-DC240 Cable Interior FTTH
Modelo: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Buena resistencia al aplaste asegurada por miembros de fuerza paralelos Poco humo, capa sin halógeno Estructura simple, peso ligero y practicidad alta
SUN-1000 Conversor de Medios
Modelo: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Velocidad de transmissión de 1000Mbps Conforme con los estándares IEEE MTBF de mas de 50000 horas Operación duplex completa y parcial y autonegociación Interfaz eléctrica y auto-adaptable con conexiones paralelas/cruzadas Larga transmisión de paquete de datos con 1552 byte QoS asegurando transmisión de paquete de datos VoIP Árbol de expansión STP formando una red redundante Bajo consumo de energía y baja temperatura para una operación estable de largo tiempo Modos de transmisión Single/Multi y Single/Dual Función para Administración de Red (opcional)
SUN-VFL Visual Fault Locator
Modelo: SUN-VFL
650nm laser source, portable size and easy to carry
Features
Portable size and easy to carry 650nm visible laser source Suitable for various optical fibers
SUN-OT5000 OTDR
Modelo: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-GE9204GP2RW-VS Optical Network Unit (ONU)
Modelo: SUN-GE9204GP2RW-VS
1xSC/APC optical port, 2xVoIP POTS ports, 4x10/100/1000M RJ45 ports and 1xRF port
Features
Compliant with IEEE802.3ah Standard Up to 20KM transmission distance VoIP and CATV function 802.11 n/b/g Wi-Fi Data encryption and group broadcasting Broadcasting storm resistance function VLAN division Port isolation between different ports ACL and SNMP to configure data packet filter flexibly Dynamic Bandwidth Allocation (DBA) Various LLID configuration and single LLID configuration Software online upgrading
SUN-FS500-I Empalmadora de Fibra Óptica
Modelo: SUN-FS500
FTTH Type Fusion splicer
Features
Empalme de cable de fibra óptica FTTH Alineamiento de fibra por la tecnología PAS Tiempo de empalme de 9s y 20s de calentamiento Variedad de métodos de alineamiento de fibra Monitor LCD color TFT de 3.5 pulgadas

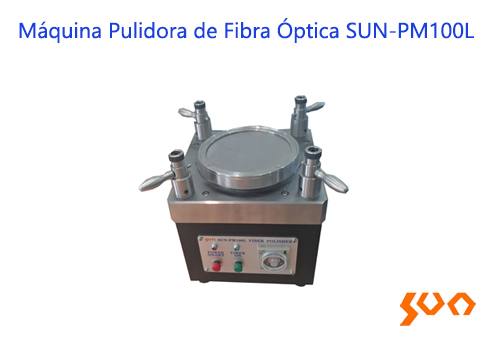

SUN-PM100L Fiber Optic Polishing Machine
