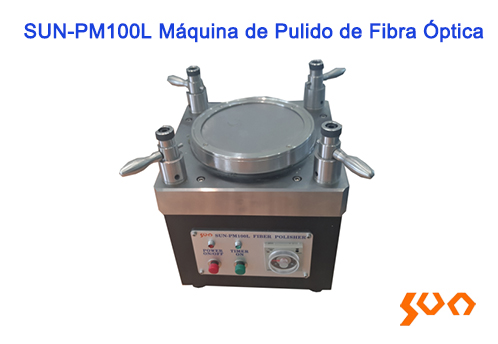

SUN-PM100L Fiber Optic Polishing Machine

Modelo: SUN-PM100L

Suitable for mass production


  • High Speed Process
  • Huge Capacity
  • FC, SC, ST, LC, MU
  • UPC or APC
  • P.C. Polishing Fixtures
  • 20 connectors: FC, SC, ST
  • 24 connectors: LC & MU
  • Self Adjusting Pressure
  • Exceeds requirements for GR-326 End Face Geometry Uses the new I.P.C. holder technology yields the best results in the industry
  • No variability in result when polishing 1 or 20 connectors
  • Polishes up to 24 connectors: MU & LC & 20 for SC, FC & ST
  • Efficient and fast processes for all connector types
  • Built w/ high quality, heat-treated, stainless steel for amazing precision and durability
  • Descripción
  • Especificaciones
  • Información sobre pedidos
  • Aplicación
  • Preguntas
  • Video Products
  •  Sun Telecom’s SUN-PM100L Fiber Optic Connector Polishing machine is desined for polishing various connector materials such as ceramic, quartz, glass, metal and plastic. It is easy to polishing SC, LC, ST, FC, MU, MTRJ with different pressure and time according to your needs. Beside it, water can be used as polishing liquid, which could save your production cost, and is one of the best products for your Patch cord Production Line.
  • Specifications
    Parameters Specifications
    Applicable connector FC, SC, ST, LC, MU, D4, E2000, MT-RJ
    Power (V) AC220~240 50/60Hz
    Dimension (mm) 230 (L) x 230 (W) x 255(H)
    Weight (kg) 23.5
    Film Size 5”

    Polishing Tray

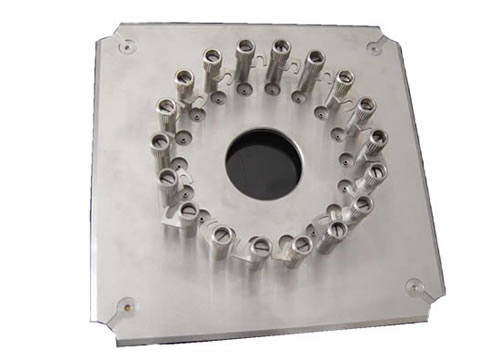

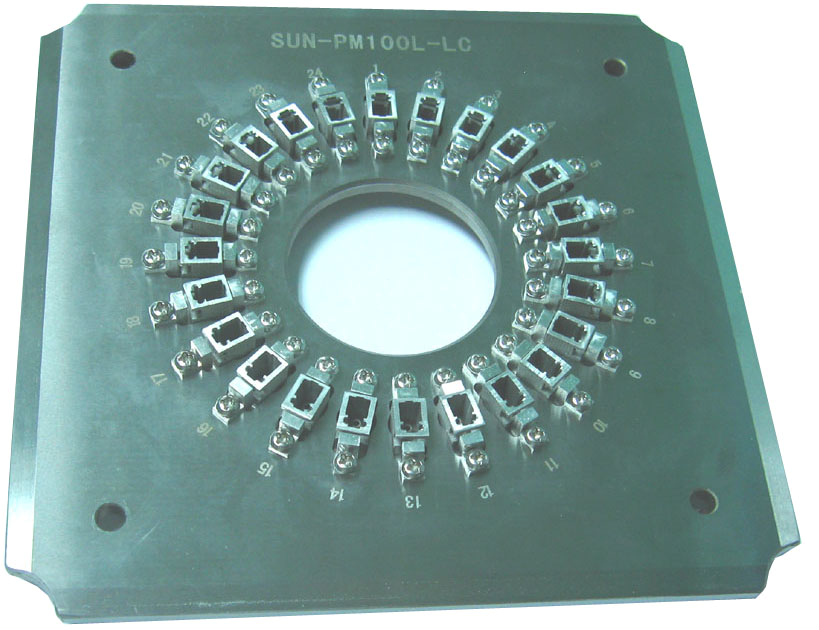

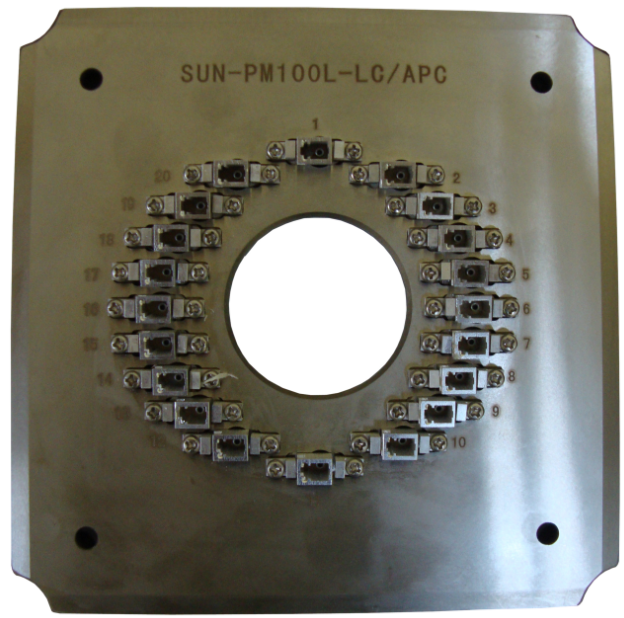

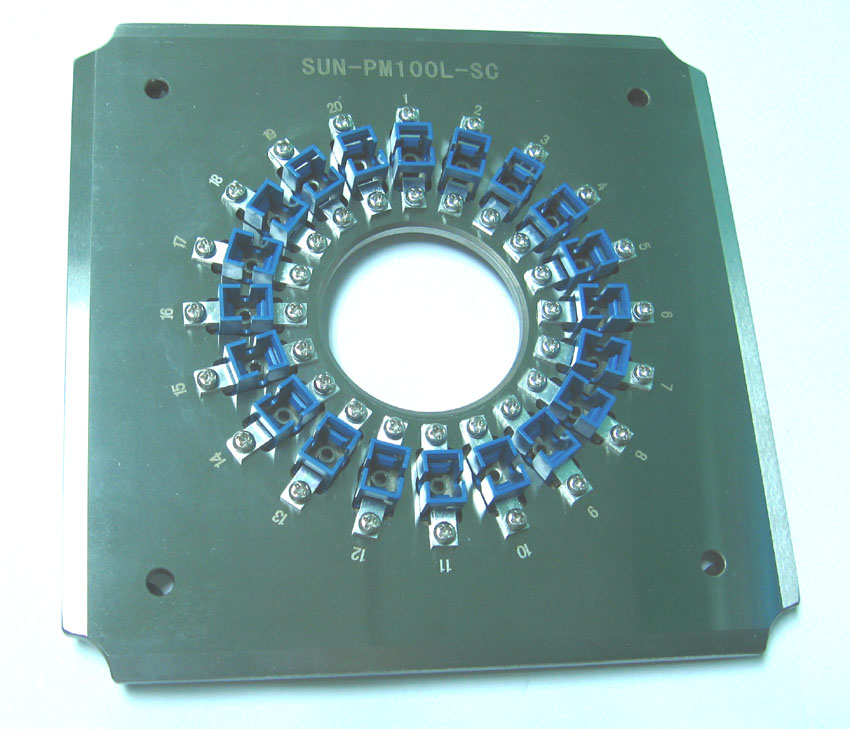

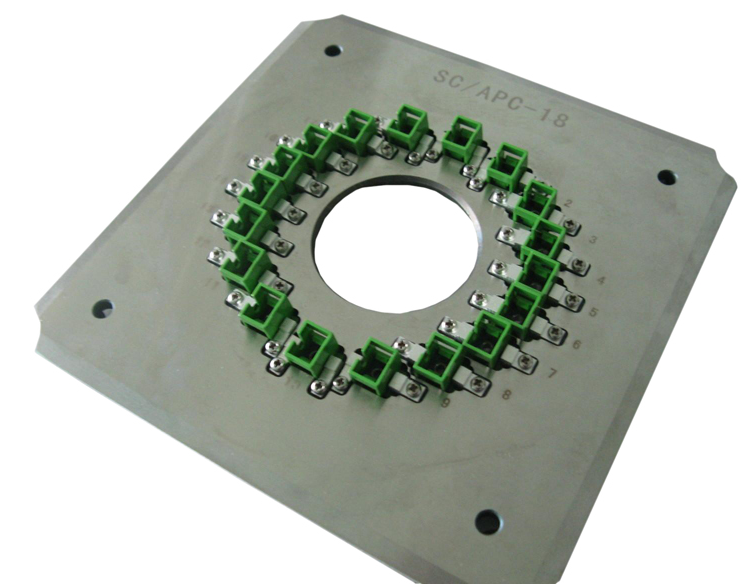

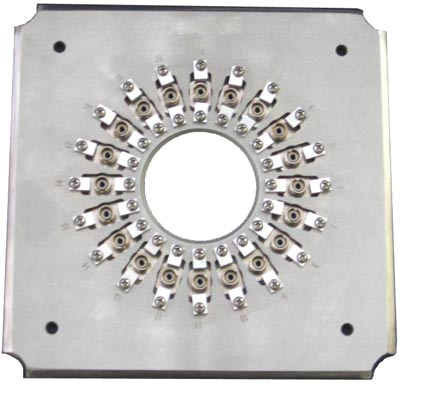

                        SUN-PM100L-FC                                          SUN-PM100L-LC                                                       SUN-PM100L-SC                                           SUN-PM100L-APC

  • Model Name Description
    SUN-PM100L Fiber Optic Polishing Machine Suitable for mass production;Method of Pressurization: Pressing from the four corners; Polishing trays not included

  • ● Patch Cord Production Line
