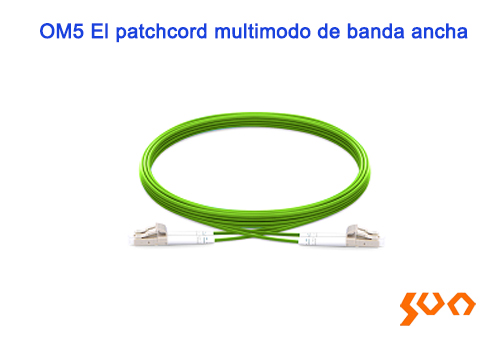

> Patchcord de Fibra Óptica
| Parameters | Specifications | ||
| Geometrical Characteristics | |||
| Core Diameter (um) | 50±2.5 | ||
| Core Non-Circularity (%) | ≤5.0 | ||
| Cladding Diameter (um) | 125.0±0.8 | ||
| Cladding Non-Circularity (%) | ≤0.6 | ||
| Coating Diameter (um) | 245±7 | ||
| Coating/Cladding Concentricity Error (um) | ≤10.0 | ||
| Coating Non-Circularity (%) | ≤6.0 | ||
| Core/cladding Concentricity Error (um) | ≤1.0 | ||
| Optical Characteristics | |||
| Attenuation (dB/km) | 850nm | ≤2.4 | |
| 953nm | ≤1.7 | ||
| 1300nm | ≤0.6 | ||
| Overfilled Modal Bandwidth (MHz.km) | 850nm | ≥3500 | |
| 953nm | ≥1850 | ||
| 1300nm | ≥500 | ||
| Effective Modal Bandwidth (MHz.km) | 850nm | ≥4700 | |
| 953nm | ≥2470 | ||
| Application Support Distance (m) | 40&100 Gigabit Ethernet @ 850nm | 200 | |
| 10GBASE-SR @850nm | 600 | ||
| 1000BASE-SX @850nm | 1100 | ||
| Group Refractive Index | 850nm | 1.482 | |
| 1300nm | 1.477 | ||
| Zero Dispersion Wavelength (nm) | 1297-1328 | ||
| Macro Bending Loss (dB) | 2 turns @15mm radius | ≤0.1 @850nm ≤0.3 @1300nm |
|
| 2 turns @7.5mm radius | ≤0.2 @850nm ≤0.5 @1300nm |
||

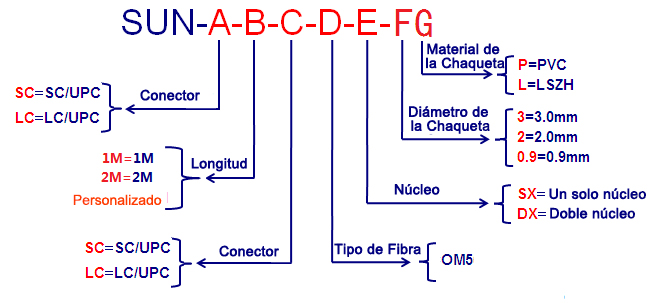

| Parameters | Specifications |
| Fiber Type | OM5 |
| Return Loss (dB) | ≥35 |
| Insertion Loss (dB) | <0.3 |
| Connector Type | LC/UPC or SC/UPC |
| Fiber Cores | Simplex or Duplex |
| Fiber Jacket | PVC or LSZH |
| Cable Length (m) | 1, 2, 10, 30, or customize |
| Insert-pull Times (time) | 1000 |
| Repeatability (dB) | ≤0.1 |
| Tensile Strength (kg) | ≥10 |
| Operating Temperature (℃) | -40~ +85 |
● SWDM transceiver
● Telecom network
● Data transmission network
● CATV, LAN & Access Network
