Posición: La página inicial > Productos > Equipo de Prueba > Fuente de Luz

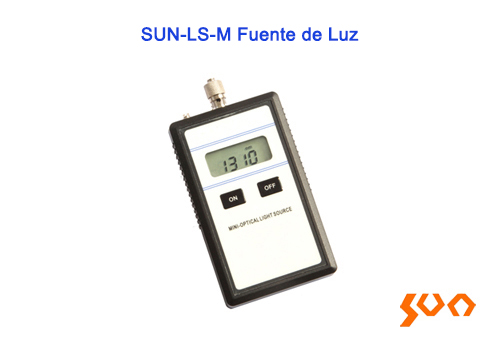

FC ⁄ PC, compact design and easy to carry
Parameters | Specification |
Wavelength (nm) | 1310 or 1550 |
Fiber Type | SM |
Emitter Type | FP-LD |
Output Power (dBm) | -7~-6 |
Output Stability (dB ,20 °C) | ±0.05dB/15 ±0.10dB/8 |
Output Light | CW |
Optical Port | FC/PC |
Power Supply | 3*AAA 1.5V batteries |
Battery Life (Hours) | 40 |
Operating Temperature (°C) | -10~60 |
Storage Temperature (°C) | -25~70 |
Dimensions (mm) | 115(L) x 60(W) x 20(H) |
Weight (g) | 110 (without battery) |
No. | Product | Unit | Quantity |
1 | Light Source | set | 1 |
2 | AAA 1.5V Battery | pieces | 3 |
3 | Cleaning Swabs | pack | 1 |
4 | Soft Bag | piece | 1 |
Model | Name | Description |
SUN-LS-M1310 | Light Source | Mini type handheld, 1310±20nm, FC port |
SUN-LS-M1550 | Light Source | Mini type handheld, 1550±20nm, FC port |

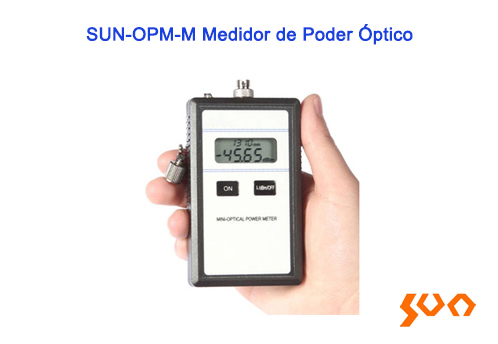

SUN-OPM-M Optical Power Meter
Modelo: SUN-OPM-M
FC, compact and easy to carry
Features
SUN-OC-SLT-SP GYTS Cable
Modelo: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
SUN-DC240 Cable Interior FTTH
Modelo: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Fiber Optic Patch Cords and Pigtails
Modelo:
Different interface optional, Easy operation, Low insertion loss
Features
Terminal de Línea Óptica SUN-GE9100B-VS (OLT)
Modelo: SUN-GE9100B-VS
2 ⁄ 4 ⁄ 8 PON ports and connect Max 512 remote ONUs (by 1:64 splitting ratio)
Features
SUN-FS950-I Empalmadora de Fibra Óptica
Modelo: SUN-FS950
Backbone Type Fusion splicer
Features
SUN-1000 Conversor de Medios
Modelo: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
SUN-FOSC-ZT607 Caja de Cierre de Empalme de Fibra Óptica
Modelo: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features
