Posición: La página inicial > Productos > Equipo de Prueba > Medidor de Poder Óptico
RS232 port, microprocessor control
Parameters | Specification |
Wavelengths Range (nm) | 850~1700 |
Communication Interface | RS232 |
Calibrated Wavelengths (nm) | 850/980/1300/1310/1480/1490/1550/1625 |
Detector Type | InGaAs |
Measurement Range (dBm) | -75~5 |
Units of Measurement | dB/dBm/xW |
Display Resolution (dB) | 0.01/0.001 |
Uncertainty | ± 3% |
Power Supply | AC90~260V |
Operation Temperature (°C) | -10~60 |
Storage Temperature (°C) | -25~70 |
Dimensions (mm) | 260(L) x 190(W) x 120(H) |
Weight (kg) | 2.6 |
No. | Product | Unit | Quantity |
1 | Optical Power Meter | set | 1 |
2 | RS232 Data Transfer Cable | pieces | 3 |
3 | Software CD | piece | 1 |
4 | Power Line | piece | 1 |
5 | Fuse | pieces | 2 |
6 | Cleaning Swabs | pack | 1 |
No. | Product | Unit | Quantity |
1 | Bare Fiber Clamp and Base | set | 1 |
Model | Name | Description |

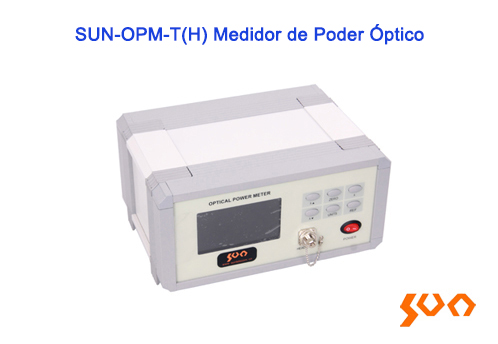

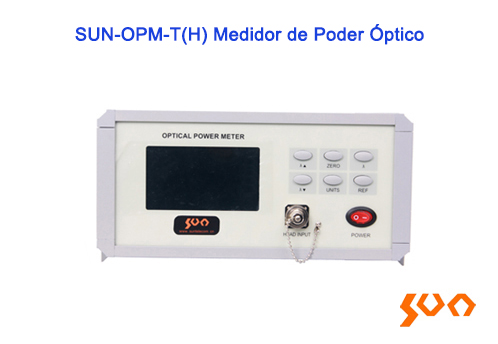

SUN-OPM-T | Optical Power Meter | Bench-top, 850/980/1300/1310/1480/1490/1550/1625nm; Measurement range: -75~+5dBm, FC port; In-built detector |

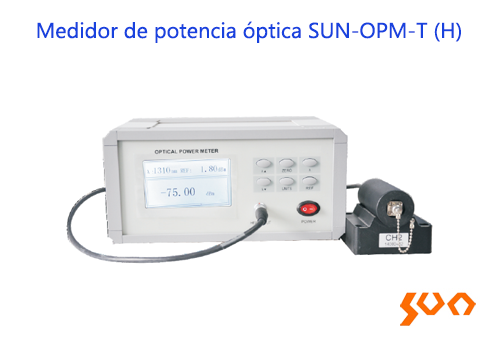

SUN-OPM-TH | Optical Power Meter | Bench-top, 850/980/1300/1310/1480/1490/1550/1625nm; Measurement range: -75~+5dBm, FC port; Horizontal external detector |
SUN-OPM-TEB | Bare Fiber Clamp and Base | Used with SUN-OPM-TH Optical Power Meter only |

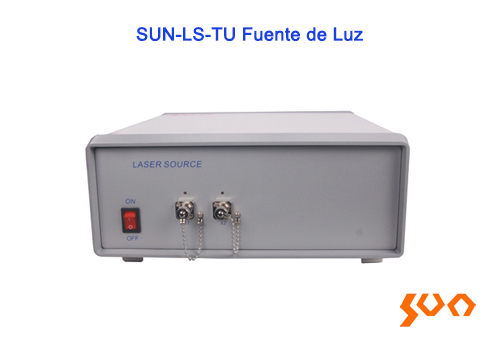

SUN-LS-TU Light Source
Modelo: SUN-LS-TU
FC ⁄ APC (SM), FC ⁄ UPC (MM), low return loss effect
Features
SUN-OC-SLT-SP GYTS Cable
Modelo: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
SUN-DC240 Cable Interior FTTH
Modelo: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Fiber Optic Patch Cords and Pigtails
Modelo:
Different interface optional, Easy operation, Low insertion loss
Features
Terminal de Línea Óptica SUN-GE9100B-VS (OLT)
Modelo: SUN-GE9100B-VS
2 ⁄ 4 ⁄ 8 PON ports and connect Max 512 remote ONUs (by 1:64 splitting ratio)
Features
SUN-FS950-I Empalmadora de Fibra Óptica
Modelo: SUN-FS950
Backbone Type Fusion splicer
Features
SUN-1000 Conversor de Medios
Modelo: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
SUN-FOSC-ZT607 Caja de Cierre de Empalme de Fibra Óptica
Modelo: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features
