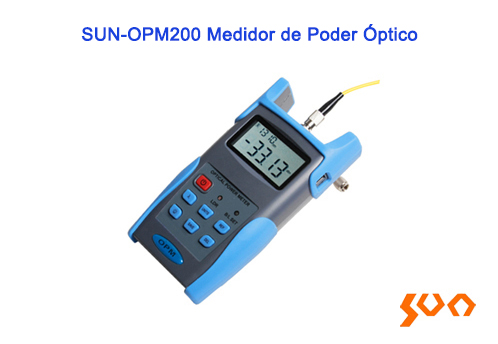

Posición: La página inicial > Productos > Equipo de Prueba > Medidor de Poder Óptico
FC ⁄ SC ⁄ ST, REF, backlight control, USB port
Parameters | Specification | |
Model | SUN-OPM200-TC | SUN-OPM200-BC |
Wavelengths (nm) | 800~1700 | |
Calibrated Wavelengths (nm) | 850/1300/1310/1490/1550/1625 | |
Detector Type | InGaAs | |
Optical Interface | FC/SC/ST interchangeable port | |
Measurement Range (dBm) | -70~6 | -50~26 |
Uncertainty (dB) | ±0.15 | |
Linearity (dB) | ±0.02 | |
Display Resolution (dB) | 0.01 | |
Frequency ID (Hz) | 270/330/1K/2K | |
Wavelengths ID (nm) | 1310/1490/1550/1625 | |
Data Storage Capacity | 1000 | |
Communication Port | USB | |
Alkaline Battery | 3*AA 1.5V | |
Battery Operation Time (Hours) | 200 | |
Auto Power off Time (min) | 10 | |
Operation Temperature (°C) | -10~60 | |
Storage Temperature (°C) | -25~70 | |
Dimensions (mm) | 175(L) x 90(W) x 44.5(H) | |
Weight (g) | 255 |
No. | Product | Unit | Quantity |
1 | Optical Power Meter | set | 1 |
2 | AA 1.5V Battery | pieces | 3 |
3 | Cleaning Swabs | pack | 1 |
4 | Soft Bag | piece | 1 |
5 | FC Adapter | piece | 1 |
6 | SC Adapter | piece | 1 |
7 | ST Adapter | piece | 1 |
Model | Name | Description |
SUN-OPM200-TC | Optical Power Meter | Handheld, 850/1300/1310/1490/1550/1625nm; Measurement range: -70~+6dBm; FC/SC/ST interchangeable port |
SUN-OPM200-BC | Optical Power Meter | Handheld, 850/1300/1310/1490/1550/1625nm; Measurement range: -50~+26dBm; FC/SC/ST interchangeable port |

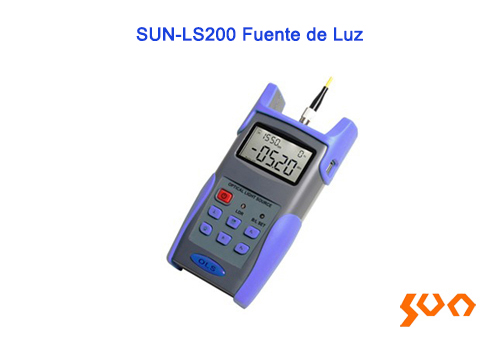

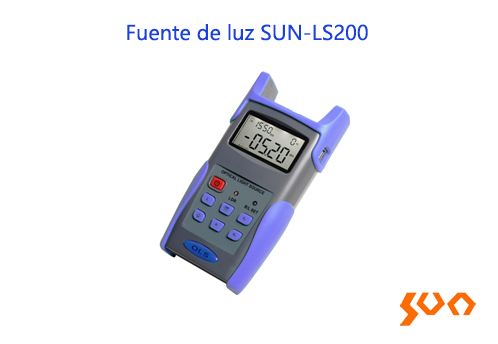

SUN-LS200 Light Source
Modelo: SUN-LS200
FC ⁄ SC ⁄ ST, backlight control, adjustable output power
Features
SUN-OC-SLT-SP GYTS Cable
Modelo: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
SUN-DC240 Cable Interior FTTH
Modelo: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Fiber Optic Patch Cords and Pigtails
Modelo:
Different interface optional, Easy operation, Low insertion loss
Features
Terminal de Línea Óptica SUN-GE9100B-VS (OLT)
Modelo: SUN-GE9100B-VS
2 ⁄ 4 ⁄ 8 PON ports and connect Max 512 remote ONUs (by 1:64 splitting ratio)
Features
SUN-FS950-I Empalmadora de Fibra Óptica
Modelo: SUN-FS950
Backbone Type Fusion splicer
Features
SUN-1000 Conversor de Medios
Modelo: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
SUN-FOSC-ZT607 Caja de Cierre de Empalme de Fibra Óptica
Modelo: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features
