FC, cost-effective
Parameters | Specification | |
Model | SUN-OPM80-TC | SUN-OPM80-BC |
Wavelengths (nm) | 800~1700 | |
Detector Type | InGaAs | |
Optical Interface | FC port (default) or FC/SC/ST interchangeable port (customized) | |
Measurement Range (dBm) | -70~6 | -50~26 |
Uncertainty | ±5% | |
Calibrated Wavelengths (nm) | 850/980/1300/1310/1490/1550 | |
Display Resolution (dB) | 0.01 | |
Alkaline Battery | 3*AA 1.5V | |
Battery Operation Time (Hours) | 130 | |
Auto Power off Time (min) | 10 | |
Operation Temperature (°C) | -10~60 | |
Storage Temperature (°C) | -25~70 | |
Dimensions (mm) | 152(L) x 74(W) x 26(H) | |
Weight (g) | 160 |
No. | Product | Unit | Quantity |
1 | Optical Power Meter | set | 1 |
2 | AA 1.5V Battery | pieces | 3 |
3 | Cleaning Swabs | pack | 1 |
4 | Soft Bag | piece | 1 |
Model | Name | Description |
SUN-OPM80-TC | Optical Power Meter | Handheld, 850/980/1300/1310/1490/1550nm; Measurement range: -70~+6dBm; FC port |
SUN-OPM80-BC | Optical Power Meter | Handheld, 850/980/1300/1310/1490/1550nm; Measurement range: -50~+26dBm; FC port |

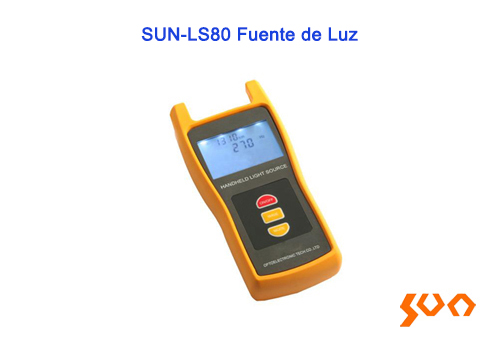

SUN-LS80 Light Source
