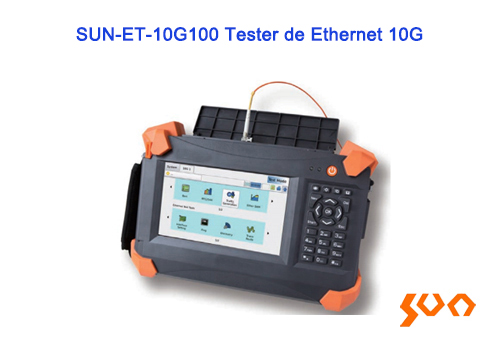

SUN-ET-10G100 Series 10Gbit Ethernet Tester

Modelo: SUN-ET-10G100

10Gbit Ethernet Tester; 10GE SFP+ x2, 10 ⁄ 100 ⁄ 1000BASE-T RJ45 x2, 100 ⁄ 1000BASE-X SFP x2

    Características

  • Smart and durable, field application ready
  • HD color touch screen, sun readable
  • PC remote control
  • Test profiles and data management, USB/FTP transfer
  • Lithium battery up to 4 hours continuous testing
  • 10GE SFP+ x2, 10/100/1000BASE-T RJ45 x2,100/1000BASE-X SFP x2
  • 10M~10Gb/s bandwidth, LAN and WAN mode
  • RFC2544 and Y.1564 test
  • Layer 1/2/3/4 BERT test
  • Multi-stream traffic generation and analysis
  • Packet capture
  • VLAN and VLAN Q-in-Q test
  • MPLS test with multiple MPLS tags
  • ODT test
  • QoS and ToS/DSCP priority testing
  • Statistical analysis report
  • Ethernet and advanced IP connectivity test
  • Intelligent detection and remote control loopback test
  • Descripción
  • Especificaciones
  • Información sobre pedidos
  • Aplicación
  • Preguntas
  • Video Products
  • 　The Ethernet tester SUN-ET-10G100 provides a complete test for next generation Ethernet solution. There are many different test modules, it can help clients to verify the performance of their Ethernet. SUN-ET-10G100 have two 10/100/1000Mb/s RJ45 , two 100/1000M SFP and two 10Gbps SFP+ it can generate test profession streams that you need and analyze them ,then provide the test result. SUN-ET-10G100 provide install and maintain services and activate new profession service. SUN-ET-10G100 can provide many kinds of test functions, it can help you to control and know the quality of your Ethernet.
  • Item Specification
    Number of Interface 7（2x 1G Base-T,2x 1.25G SFP Slot,2x10G SFP+ Slots,1x Manage）
    Optical Interface 1000Base-SX 1000Base-LX 1000Base-ZX
    Wavelength（nm） 850 1310 1550
    Laser Type/Connector/Slot VCSEL/LC/SFP FP/LC/SFP DFB/LC/SFP
    Copper Interface 10M Base-T 100M Base-T 1000M Base-T
    SFP+ Optical Interface（10G） 10G Base-SR/SW 10G Base-LR/LW 10G Base-ER/EW
    Wavelength（nm） 850 1310 1550
    Laser Type/Connector/Slot VCSEL/LC/SFP+ DFB/LC/SFP+ CML/LC/SFP+
    General
    Screen 7 inch color LED touch screen (resolution 960 x 480)
    Interface USB 2.0;RJ-45
    Data Storage 8GB
    Battery lithium battery（4400mAh）
    Battery Life (h) 4
    Power AC/DC Adapter,Input:100 ~ 240V AC,50/60Hz,Max 2A; Output:24V DC 90W
    Dimension（mm） 282×186×75
    Weight（kg） 2.9
    Language English

  • Type of SUN-ET-10G100：
    SUN-ET-10G100A：All Function 2 x 10G Test Ports
    SUN-ET-10G100B：All Function 1 x 10G Test Port, Loopback Function 1 x 10G Test Port

    Standard ：
    Main Body, Battery, Software CD, AC Adapter, Carry Bag, Warranty Card, User’s Manual

    Optional：
    1. CAT6 RJ-45 Gbit Cable
    2. LC-LC Duplex Patch Cord
    3. 10G SFP+ Module（Wavelength/Transmission:850nm/550m, 1310nm/10km,1550nm/40km）
    4. 1.25G SFP Module（Wavelength/Transmission:850nm/550m,1310nm/10km）
  • ● Network engineering site installation and activation test
    ● Local, Metro Ethernet construction, deployment and maintenance
    ● Communication Teaching and Research
