Posición: La página inicial > Productos > Equipo de Prueba > Identificador de Cable

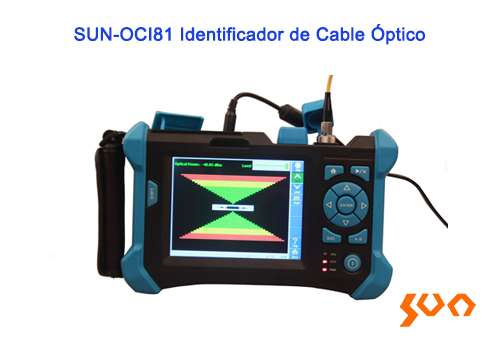

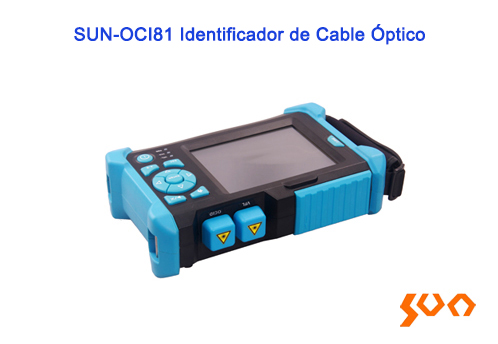

Optical cable identifier, cables locating and identifying by audio and visual, distance up to 40 km
Parameters | Specification | ||
Model | SUN-OCI8110-20 | SUN-OCI8110-40 | SUN-OCI8120-40 |
Test Method | Single Fiber | ||
Wavelength (nm) | 1550 | ||
Min. Optical Power (dBm) | -15 | -8 | -15 |
Unidirectional Fiber Loss (dB) ① | 5 | 10 | 10 |
Max. Detection Distance (km) ② | 20 | 40 | 40 |
Dead Zone | None | ||
Fiber End Return Loss (dB) | ≤20 | ||
SNR (dB) | >40 | >25 | |
Fiber Type | SM | ||
Optical Interface | FC/SC/ST interchangeable port | ||
Visual Fault Locator (VFL) | Wavelength: 650nm Output power: ≥-3 dBm Max. testing distance: 3km |
No | |
Display | 5.6’ LCD touch screen | ||
Output Mode | Visual: vibration amplitude on touch screen LCD | ||
Audio: sound in headphone | |||
Power Supply | DC 12V/3A | ||
Battery | Lithium battery (7.4V, 10.4Ah), ≥14 hours of continuous work | ||
Power (W) | <6 | ||
Operation Temperature (°C) | -10~+50 | ||
Storage Temperature (°C) | -40~+70 | ||
Dimensions (mm) | 235(L) × 150(W) × 65(H) | ||
Weight (kg) | 1.5 (with battery) |
No. | Product | Unit | Quantity |
1 | Optical Cable Identifier | set | 1 |
2 | Power Adapter | piece | 1 |
3 | CD | piece | 1 |
4 | FC Adapter | piece | 1 |
5 | Headphone | piece | 1 |
6 | Fiber Reflector (only for SUN-OCI8110) | piece | 1 |
7 | FC/UPC-FC/APC Patchcord | piece | 1 |
8 | Knocking Stick | piece | 1 |
9 | Bag | piece | 1 |
Model | Name | Description |
SUN-OCI8110-20 | Optical Cable Identifier | SM, FC/APC optical port; Detection distance: 20km; VFL (Visual Fault Locator) function included; Suitable for cables with a connector (UPC) at another end |
SUN-OCI8110-40 | Optical Cable Identifier | SM, FC/APC optical port; Detection distance: 40km; VFL (Visual Fault Locator) function included; Suitable for cables with a connector (UPC) at another end |
SUN-OCI8120-40 | Optical Cable Identifier | SM, FC/APC optical port; Detection distance: 40km; Suitable for cables with a connector (UPC or APC) at another end |
SUN-OC-SLT-SP GYTS Cable
Modelo: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
SUN-DC240 Cable Interior FTTH
Modelo: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Fiber Optic Patch Cords and Pigtails
Modelo:
Different interface optional, Easy operation, Low insertion loss
Features
Terminal de Línea Óptica SUN-GE9100B-VS (OLT)
Modelo: SUN-GE9100B-VS
2 ⁄ 4 ⁄ 8 PON ports and connect Max 512 remote ONUs (by 1:64 splitting ratio)
Features
SUN-FS950-I Empalmadora de Fibra Óptica
Modelo: SUN-FS950
Backbone Type Fusion splicer
Features
SUN-1000 Conversor de Medios
Modelo: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
SUN-FOSC-ZT607 Caja de Cierre de Empalme de Fibra Óptica
Modelo: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features

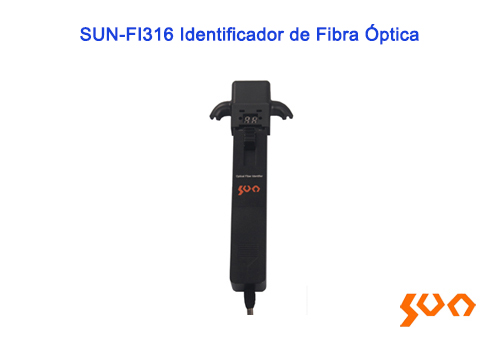

SUN-FI316 Optical Fiber Identifier
