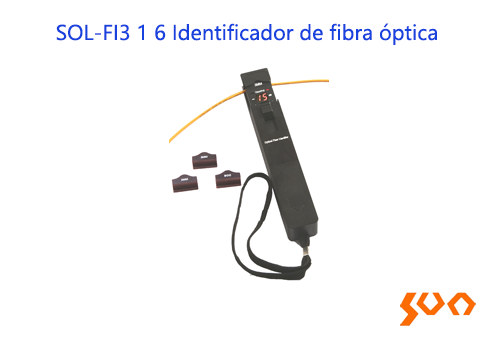

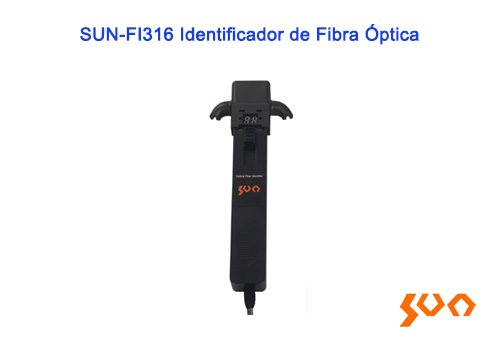

SUN-FI316 Optical Fiber Identifier

Modelo: SUN-FI316

This fiber identifer can identifer SM fiber without damaging the fiber

    Características

  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) without any damage of the fibers
  • Displays the core power of the fibers (-50~+0dBm)
  • Low bending loss and highly efficient output
  • Easy-to-replace adaptors (0.25mm, 0.9mm, 2.0mm, 3.0mm to match various optical cables)
  • Mechanical damp design of adapter heads to ensure the fiber without damage
  • KEY operation design, easy-to-sue
  • Descripción
  • Especificaciones
  • Información sobre pedidos
  • Aplicación
  • Preguntas
  • Video Products
  •  Sun Telecom’s SUN-FI316 Optical Fiber Identifier is an essential installation and maintenance instrument.

    By inserting the fiber into its adapter head, SUN-FI316 Optical Fiber Identifier can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so as to avoid the opening of the fiber at the splice point for identification and thus avoids the interruption of the service.

    In the presence of traffic, the intermittently audible tone is activated. The SUN-FI316 Optical Fiber Identifier also allows relative core power display and identification of the 270Hz, 1 kHz and 2 kHz frequencies. When they are used to detect the frequency, the continuously audible tone is activated. There are four types of adapter heads available: 0.25mm, 0.9mm, 2.0mm, and 3.0mm.
  • Specifications:
    Parameters Specifications
    Identified Wavelength Range (nm) 800-1700
    Identified Signal Type CW, 270Hz±5%
    Detector Type Ø1mm InGaAs 2PCs
    Adaptor Type Ø 0.25 (Applicable for Bare Fiber)
    Ø 0.9 (Applicable for Ø 0.9 Cable)
    Ø 2.0 (Applicable for Ø 2.0 Cable)
    Ø 3.0 (Applicable for Ø 3.0 Cable)
    Signal Direction Left & Right LED
    Optical Power Reading (dBm) -50~+0
    Signal Frequency (Hz) 270, 1K, 2k
    Power Supply One 9V Alkaline Battery
    Sensitivity (dB) -50
    Relative Humidity 0 to 90%
    Allowable Attenuation ≤1dB
    Operating Temperature (°C) -10~+60
    Storage Temperature (°C) -25~+70
    Dimensions (mm) 195 x 30x 27
    Weight (g) 235

    Standard Package:

    Model Contents QTY Unit
    SUN-FI316 SUN-FI316 Optical Fiber Identifier 1 Piece
    Adaptors Heads 4 Piece
    Alkaline Battery 1 Piece
    Instruction Manual 1 Copy
    Cotton Tampon and Soft Carrying Case 1 Set

  • Model Name Description
    SUN-FI316 Optical Fiber Identifier Identified wavelength range: 800-1700nm; Identified signal type: CW, 270Hz, 1kHz, 2kHz

  • ● Maintenance in Telecom
    ● Maintenance CATV
    ● Test Lab of optical fibers
    ● Other Fiber Optic Measurements
