SUN-PLC Planar Light Wave Circuit (PLC) Splitters

Modelo: SUN-PLC

Splitting ratio: 1x2, 1(2)x4, 1(2)x8, 1(2)x16, 1(2)x32, 1(2)x64

    Características

  • Low insertion loss
  • Low PDL
  • High reliability and stability
  • Good channel uniformity
  • Descripción
  • Especificaciones
  • Información sobre pedidos
  • Aplicación
  • Preguntas
  • Video Products
  •  Sun Telecom’s SUN-PLC Planar Light Wave Circuit (PLC) Splitters are types of optical power management device which use silica optical waveguide technology. They have small size, high reliability, wide operating wavelength range and good channel uniformity. They are widely used in PON networks to realize optical signal power splitting.


  • Specifications
    Parameters Specification
    Type 1x2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
    Operating Wavelength (nm) 1260-1650
    Insertion Loss (dB) ≤3.8 ≤7.1 ≤10.2 ≤13.5 ≤16.8 ≤20.1
    Loss Uniformity (dB) ≤0.6 ≤0.6 ≤0.8 ≤1.0 ≤1.5 ≤2.0
    PDL (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
    Return Loss (dB) ≥55
    Directivity (dB) ≥55
    Wavelength Dependent Loss (dB) ≤1.0
    Pigtail Length (m) 1.0 (±0.1) or customer specified
    Fiber Type ITU G657A1 or customer specified
    Operating Temperature (°C) -40 ~ 85
    Storage Temperature (°C) -40 ~ 85
    Type 2 x 2 2 x 4 2 x 8 2 x 16 2 x 32 2 x 64
    Operating Wavelength (nm) 1260-1650
    Insertion Loss (dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.3
    Loss Uniformity (dB) ≤0.6 ≤0.6 ≤0.8 ≤1.0 ≤1.5 ≤2.0
    PDL (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
    Return Loss (dB) ≥55
    Directivity (dB) ≥55
    Wavelength Dependent Loss (dB) ≤1.0
    Pigtail Length (m) 1.0 (±0.1) or customer specified
    Fiber Type ITU G657A1 or customer specified
    Operating Temperature (°C) -40 ~ 85
    Storage Temperature (°C) -40 ~ 85
    Note: All above specifications excluding connector loss and adaptor loss.

    Package Dimensions

    PLC Type ABS (mm) Blockless (mm) Rack-Mount
    (mm)
    Insert (mm) LGX (mm)
    1 x 2 100 x 80 x 10 55 x 4 x 4 483x228x44 130x 100 x 25 -
    1 x 4 100 x 80 x 10 60 x 7 x 4 483x228x44 155.5 x129 x29
    1 x 8 100 x 80 x 10 60 x 7 x 4 483x228x44 -
    1 x 16 120 x 80 x 18 60 x 12 x 4 483x228x44 130 x 100 x 50 -
    1 x 32 120 x 80 x 18 80 x 20 x 6 483x228x44 130 x 100 x 100 -
    1 x 64 140 x 115 x 18 100 x 40 x 6 483x228x88 - -
    2 x 2 100 x 80 x 10 60 x 12 x 4 483x228x44 - -
    2 x 4 100 x 80 x 10 60 x 12 x 4 483x228x44 - -
    2 x 8 100 x 80 x 10 60 x 12 x 4 483x228x44 - -
    2 x 16 120 x 80 x 18 60 x 12 x 4 483x228x44 - -
    2 x 32 120 x 80 x 18 80 x 20 x 6 483x228x44 - -
    2 x 64 140 x 115 x 18 100 x 40 x 6 483x228x88 - -

  • Ordering Information

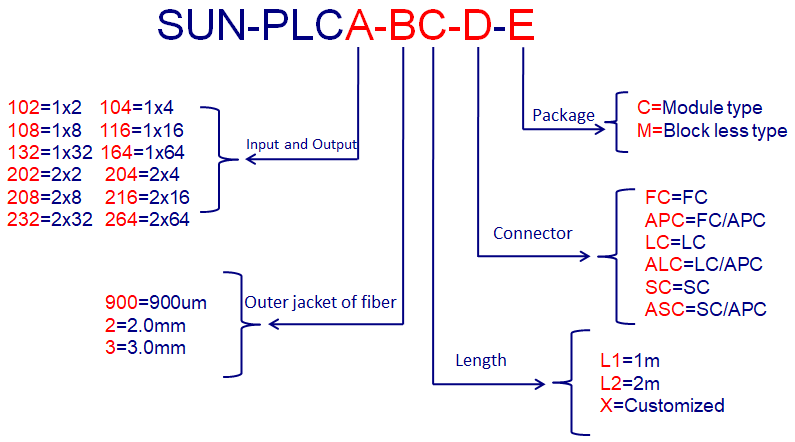

    1) ABS & Blockless Type

    For blockless type PLC, it only has 900um fiber outer jacket.

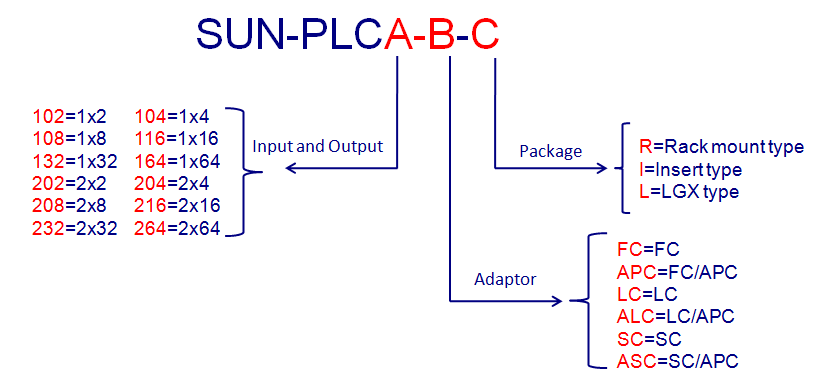

    2) Rack mount Type, Insert Type, LGX Type

    ● For rack mount type PLC, its max splitting ratio is 2:64
    ● For insert type PLC, its max splitting ratio is 1:64
    ● For LGX type PLC, its max splitting ratio is 2:32


  • ● FTTH
    ● CATV
    ● PON

Pertinente
