SUN-GE9204GP2RW-VS Optical Network Unit (ONU)

Posición: La página inicial > Productos > xPON > Soluciones EPON

Modelo: SUN-GE9204GP2RW-VS

1xSC/APC optical port, 2xVoIP POTS ports, 4x10/100/1000M RJ45 ports and 1xRF port

Características

Compliant with IEEE802.3ah Standard
Up to 20KM transmission distance
VoIP and CATV function
802.11 n/b/g Wi-Fi
Data encryption and group broadcasting
Broadcasting storm resistance function
VLAN division
Port isolation between different ports
ACL and SNMP to configure data packet filter flexibly
Dynamic Bandwidth Allocation (DBA)
Various LLID configuration and single LLID configuration
Software online upgrading

Descripción
Especificaciones
Información sobre pedidos
Aplicación
Preguntas
Video Products

　Sun Telecom’s SUN-GE9204GP2RW-VS optical network unit (ONU) is one of the EPON products used in user side and designed to meet the requirements of the broadband access network. This ONU has 1xSC/APC optical port, 4x10/100/1000M RJ45 ports, 2xVoIP POTS ports and 1xRF port in compliance with standards IEEE EPON. It provides triple play and Wi-Fi service.
111

Specifications

Parameters		Specification
Rate (Gbps)		Uplink: 1.244 Downlink: 1.244
Optical Output Power (dBm)		-1~4
Receiving Sensitivity (dBm)		-25
Receiving Saturability (dBm)		-3
PON Interface		1xSC/APC optical port
Data Interface		4x10/100/1000M RJ45 ports
POTS Interface		2xVoIP ports
CATV Interface		1xCATV Threaded F-female (British)
CATV Indicators	Receiving Sensitivity (dBm)	-8~2
	RF Bandwidth Range (MHz)	47~875
	Output Level (dBuV)	80
	CTB (dBc)	>60
	CSO (dBc)	>60
	CNR (dBc)	>47
	Output Return Loss (dB)	>14
	Output Impedance (Ω)	75
Power Supply		External power adapter 12V/1A
Power Consumption (W)		<12
Working Temperature (ºC)		-5~55
Humidity (%)		10~90, no condensing
Dimensions (mm)		240(L) x 150(W)x 37(H)
Weight (g)		620

Standard Accessories

No.	Product	Unit	Quantity
1	Optical Network Unit (ONU)	set	1
2	Power Adapter	set	1
3	UTP Patch Cord	piece	1

Other Options of ONUs

Model	Name	Description
SUN-GE9204GP2W-VS	Optical Network Unit (ONU)	1 port of SC/UPC, 4 ports of 10/100/1000M RJ45 and 2 ports of VoIP POTS; With Wi-Fi; External power supply: AC220V to DC12V power adapter
SUN-GE9201H(Z)G-VS	Optical Network Unit (ONU)	1 port of SC/UPC and 1 port of 10/100/1000M RJ45; External power supply: AC220V to DC12V power adapter
SUN-GE9201GW-VS	Optical Network Unit (ONU)	1 port of SC/UPC; port of 10/100/1000M RJ45; With Wi-Fi; External power supply: AC220V to DC12V power adapter

Model	Name	Description
SUN-GE9204GP2RW-VS	Optical Network Unit (ONU)	1 port of SC/APC, 4 ports of 10/100/1000M RJ45, 2 ports of VoIP POTS and 1 port of CATV Threaded F-female (British); With Wi-Fi; External power supply: AC220V to DC12V power adapter

● FTTH access networks
● Telecommunication networks
● Local Area Networks

Pertinente

SUN-PLC Planar Light Wave Circuit (PLC) Splitters

Modelo: SUN-PLC

Splitting ratio: 1x2, 1(2)x4, 1(2)x8, 1(2)x16, 1(2)x32, 1(2)x64

SUN-PLC Planar Light Wave Circuit (PLC) Splitters

Modelo: SUN-PLC

Features

Low insertion loss
Low PDL
High reliability and stability
Good channel uniformity

Conoce más

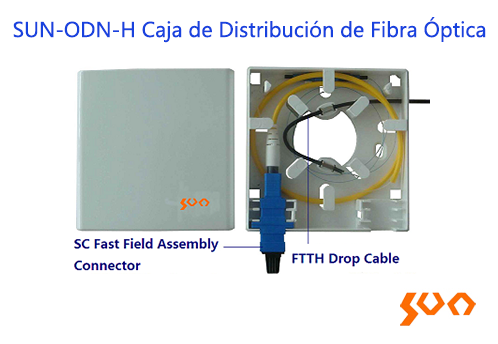

SUN-ODN-H Caja de Distribución de Fibra Óptica

Modelo: SUN-ODN-H

Indoor, Max adaptors: 1 ⁄ 2, SC, DLC adaptors

SUN-ODN-H Caja de Distribución de Fibra Óptica

Modelo: SUN-ODN-H

Features

Montaje de pared interior
Panel adaptador SC/FC
Conector rápido aplicable

Conoce más

SUN-OPM-PON300 Optical Power Meter

Modelo: SUN-OPM-PON300

FC ⁄ SC ⁄ ST, EPON GPON test, USB port

SUN-OPM-PON300 Optical Power Meter

Modelo: SUN-OPM-PON300

Features

EPON/GPON test
Measurement of all three wavelengths (1310nm ,1490nm, 1550nm) on the fiber simultaneously
USB connection for data transfer
Optional normal optical power meter and visual fault locator modules

Conoce más

SUN-DC240 Cable Interior FTTH

Modelo: SUN-DC240

Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application

SUN-DC240 Cable Interior FTTH

Modelo: SUN-DC240

Features

Buena resistencia al aplaste asegurada por miembros de fuerza paralelos
Poco humo, capa sin halógeno
Estructura simple, peso ligero y practicidad alta

Conoce más

Fiber Optic Patch Cords and Pigtails

Modelo:

Different interface optional, Easy operation, Low insertion loss

Fiber Optic Patch Cords and Pigtails

Modelo:

Features

Low insertion loss
High return loss
Good repeatability
High temperature stability

Conoce más

SUN-AD Fiber Optic Adaptors

Modelo: SUN-AD

The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)

SUN-AD Fiber Optic Adaptors

Modelo: SUN-AD

Features

Different interface optional
Easy operation
Low insertion loss
Reuse for single / multimode fiber

Conoce más

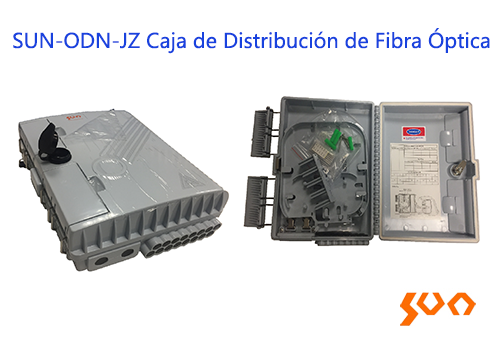

SUN-ODN-JZ Caja de Distribución de Fibra Óptica
