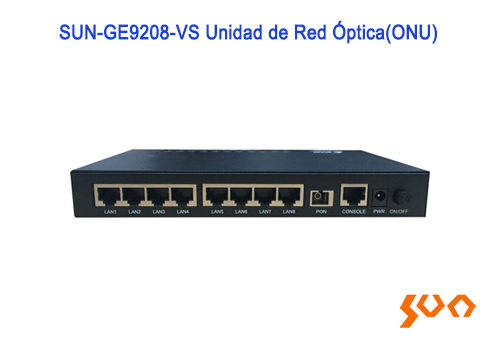

SUN-GE9208-VS Optical Network Unit (ONU)

Posición: La página inicial > Productos > xPON > Soluciones EPON

Modelo: SUN-GE9208-VS

1xSC ⁄ UPC optical port and 8x10 ⁄ 100M RJ45 ports

Características

Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc
Integrated OAM remote configuration and maintenance function
Support rich QinQ VLAN function and IGMP Snooping multicast feature
Functions like transceiver diagnostic monitoring, transmitter disable, etc
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Easily configuration by local CLI

Descripción
Especificaciones
Información sobre pedidos
Aplicación
Preguntas
Video Products

　Sun Telecom’s SUN-GE9208-VS ONU is one of the EPON optical network units designed to meet the requirements of the broadband access network. This ONU has 1xSC/UPC optical port and 8x10/100M RJ45 ports in compliance with standards IEEE EPON. It provides high-speed Internet access.

Specifications

Parameters	Specification
Rate (Gbps)	Uplink: 1.244 Downlink: 1.244
Optical Output Power (dBm)	-1~4
Receiving Sensitivity (dBm)	-27
Receiving Saturability (dBm)	-3
PON Interface	1xSC/UPC optical port
Data Interface	8x10/100M RJ45 ports
Power Supply (V)	DC 12V,external AC-DC power adaptor
Power Consumption (W)	<12
Working Temperature (ºC)	-10~55
Humidity (%)	10~90, no condensing
Dimensions (mm)	205(L) x 125(W) x 28(H)
Weight (g)	400

Standard Accessories

No.	Product	Unit	Quantity
1	Optical Network Unit (ONU)	set	1
2	Power Adapter	set	1
3	UTP Patch Cord	piece	1

Other Options of ONUs

Model	Name	Description
SUN-GE9204GP2W-VS	Optical Network Unit (ONU)	1 port of SC/UPC, 4 ports of 10/100/1000M RJ45 and 2 ports of VoIP POTS; With Wi-Fi; External power supply: AC220V to DC12V power adapter
SUN-GE9204GP2RW-VS	Optical Network Unit (ONU)	1 port of SC/APC, 4 ports of 10/100/1000M RJ45, 2 ports of VoIP POTS and 1 port of CATV Threaded F-female (British); With Wi-Fi; External power supply: AC220V to DC12V power adapter
SUN-GE9201H(Z)G-VS	Optical Network Unit (ONU)	1 port of SC/UPC and 1 port of 10/100/1000M RJ45; External power supply: AC220V to DC12V power adapter
SUN-GE9201GW-VS	Optical Network Unit (ONU)	1 port of SC/UPC and 1 port of 10/100/1000M RJ45; With Wi-Fi; External power supply: AC220V to DC12V power adapter

Model Name Description

SUN-GE9208-VS Optical Network Unit (ONU) 1 port of SC/UPC and 8 port of 10/100/M RJ45; External power supply: AC220V to DC12V power adapter
● FTTH access networks
● Telecommunication networks
● Local Area Networks
