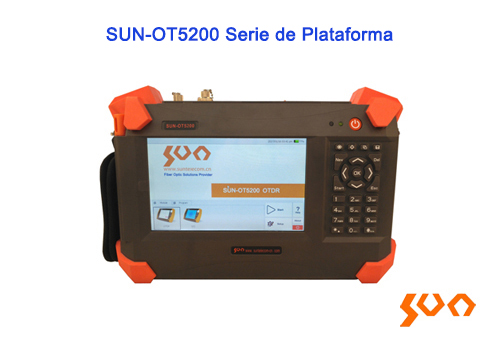

SUN-OT5200 OTDR Platform

Modelo: SUN-OT5200

OTDR platform, multi-function and high performance, dynamic range up to 50dB

    Características

  • Dynamic Range up to 50dB
  • Short zone: EDZ 0.8m, ADZ 4.5m
  • Auto/Manual test and analysis
  • Multi-wavelength testing
  • Visible laser source function
  • In-Line test and through Splitter test(1625/1650nm with filter)
  • LAN/WAN/FTTx application
  • 7 inch touch screen
  • Descripción
  • Especificaciones
  • Información sobre pedidos
  • Aplicación
  • Preguntas
  • Video Products

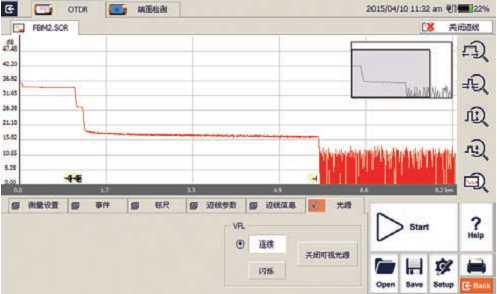

  • 　SUN-OT5200 series are the OTDR platform, which are specially designed for FTTx/WAN applications and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting. It is convenient and accurate for auto/manual testing, multi-wavelength testing and multi-functional analysis.
  • Specifications
    Parameters Specification
    Display 7 inch TFT Touch Screen (800×480)
    Connectivity USB×2; 10/100Mbit/s RJ-45×1
    Memory 2GB
    Power Supply Rechargeable Li-Ion Battery/AC Adapter
    Battery Life 10 hours continuous operation
    Working Temp -20℃ - 50℃
    Storage Temp -40℃ - 60℃
    Humidity  0 - 95% (Non-Condensing)
    Weight 2.1kg
    Dimensions(L×W×H ) 290×175×75mm
    OTDR Module Wavelength (±20nm) Dynamic Range (dB)(1)  EDZ (m) (2) ADZ(m) (2)
    OT5200-S2B 1310/1550 45/43 0.8 4.5
    OT5200-S3A-PL 1310/1550/1625 42/41/40 0.8 4.5
    OT5200-SM4A 850/1300/1310/1550 23/36/38/36 1.5 8/8/10/10
    Selectable Range SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km
    MM: 1.3, 2.5, 5, 10, 20, 40Km
    Pulse Width SM: 5ns,10ns,30ns,100ns,300ns,1µs,2.5µs,10µs,20µs
    MM: 5ns, 10ns, 30ns, 1µs, 2.5µs
    Averaging Time Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s
    Emitter Type LD
    Connector FC/PC (Interchangeable SC, ST)
    Distance Measure Accuracy ±(1m + 10-5×distance + sampling spacing)
    Attenuation Detect Accuracy ±0.05 dB/dB
    Reflection Detect Accuracy ±4 dB
    Visible Laser Source Output Power: ≥ -3dBm; MOD Frequency: 1Hz; Detecting Range: 5Km

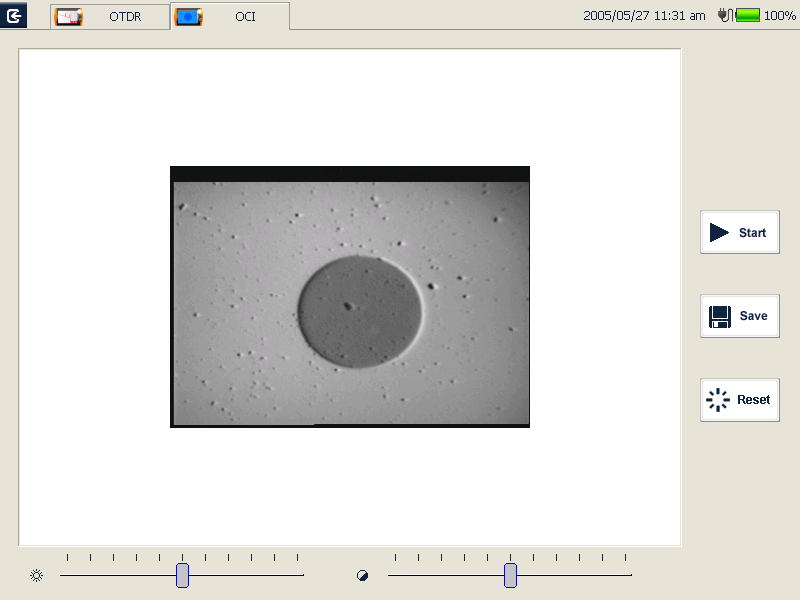

    MCI100 Optical Connector Inspector Module (Optional)
    Field of View 400µm×300µm
    Resolution ≤1.5µm
    Focusing Manual Focus
    Microscope Dimensions Ø32×175mm

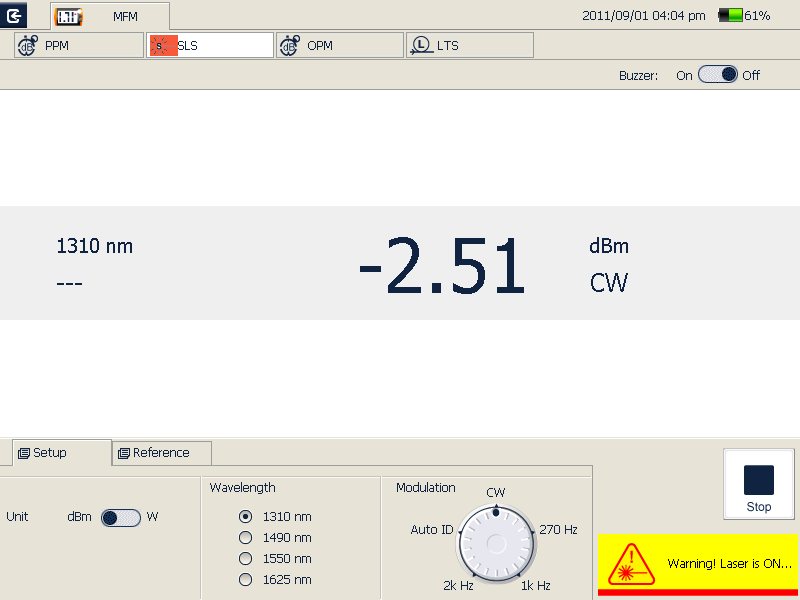

    LS100 Stabilized Laser Source（Optional）
    Wavelength (±20nm) Same as OTDR’s
    Output Power  ≥ -7dBm

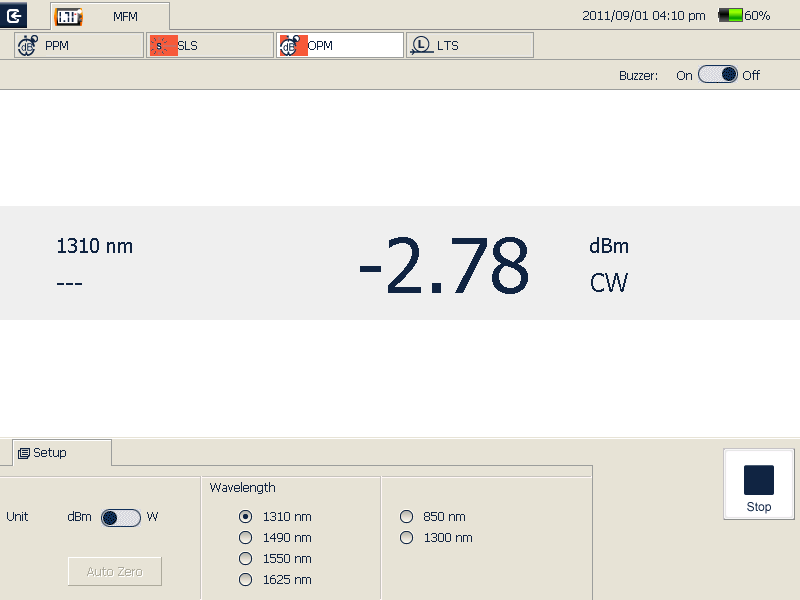

    PM100 Normal Power Meter Module(Optional)
    Calibrated Wavelength 850nm,1300nm,1310nm,1490nm,1550nm,1625nm,1650nm
    Measurement Range -70dBm - +6dBm (-60dBm - +6dBm @ 850nm)
    Detector Type InGaAs
    Display Resolution 0.01dB
    Accuracy ± 5% ± 0.01nW (±0.5dB@850nm)
    * Specifications subject to change without notice
    Notes: (1) Dynamic range measurement at 20µs pulse width and 180s averaging time;
                (2) Dead Zone measurement at 0.6Km and reflection <-45dB; EDZ measurement at 5ns, ADZ measurement at 10ns.

    Optional Module
    LS100: Stabilized Laser Source Module (as OTDR)
    PM100: Optical Power Meter Module
    MCI100: Optical Connector Inspector Module

    Standard Package
    No. Product Unit Quantity
    1 OTDR Platform set 1
    2 Lithium Battery piece 1
    3 USB Cable piece 1
    4 USB Disk piece 1

    Optional Accessories
    No. Product Unit Quantity
    1 SC Adapter piece 1
    2 ST Adapter piece 1
    3 MCI Test Handle piece 1
    4 1.25mm Universal APC Male Adapter (Suitable for MCI Test Handle) piece 1
    5 2.5mm Universal APC Male Adapter (Suitable for MCI Test Handle) piece 1
    6 SC/APC Female Adapter (Suitable for MCI Test Handle) piece 1
    7 FC/APC Female Adapter (Suitable for MCI Test Handle) piece 1
    8 LC/APC Female Adapter (Suitable for MCI Test Handle) piece 1

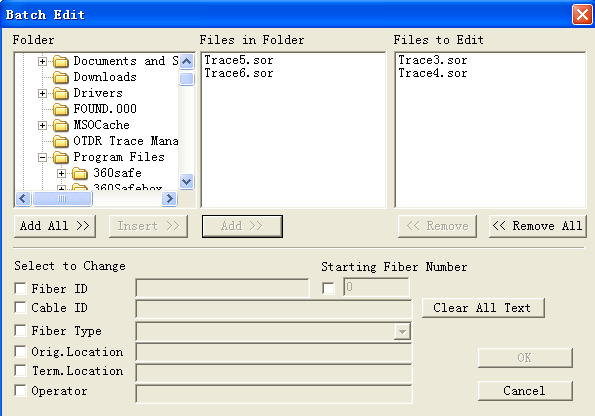

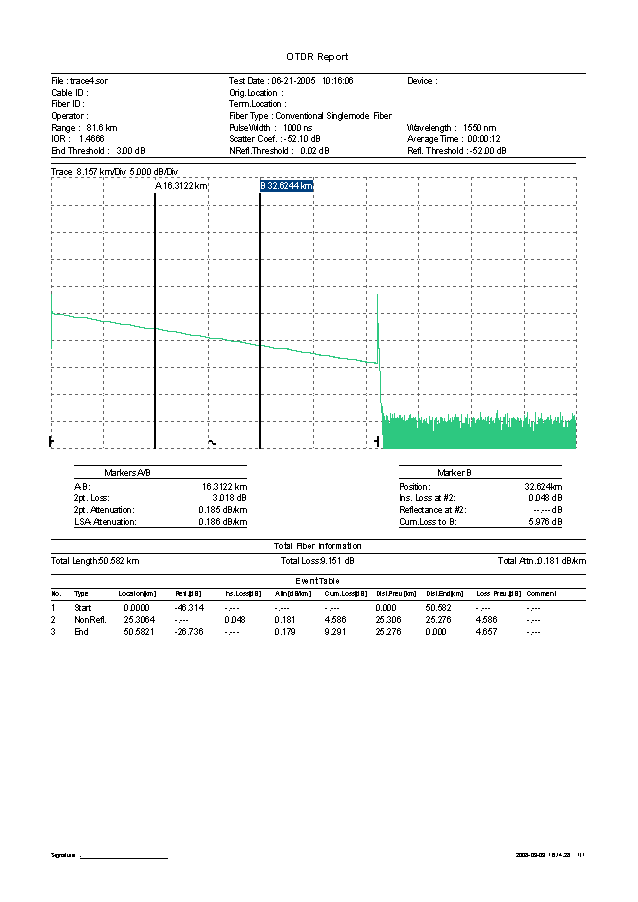

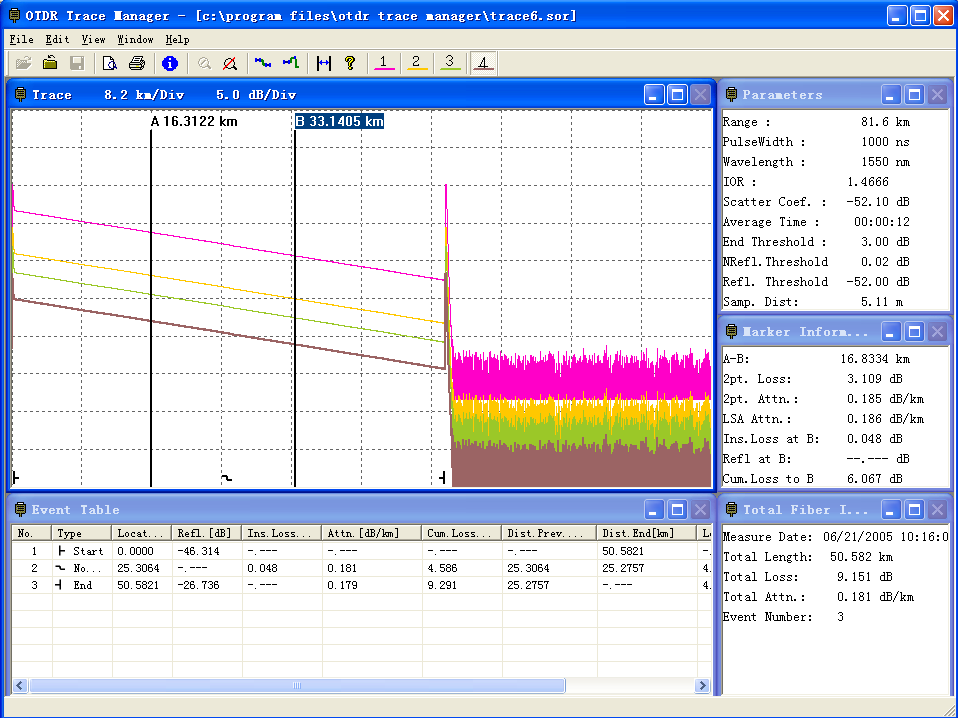

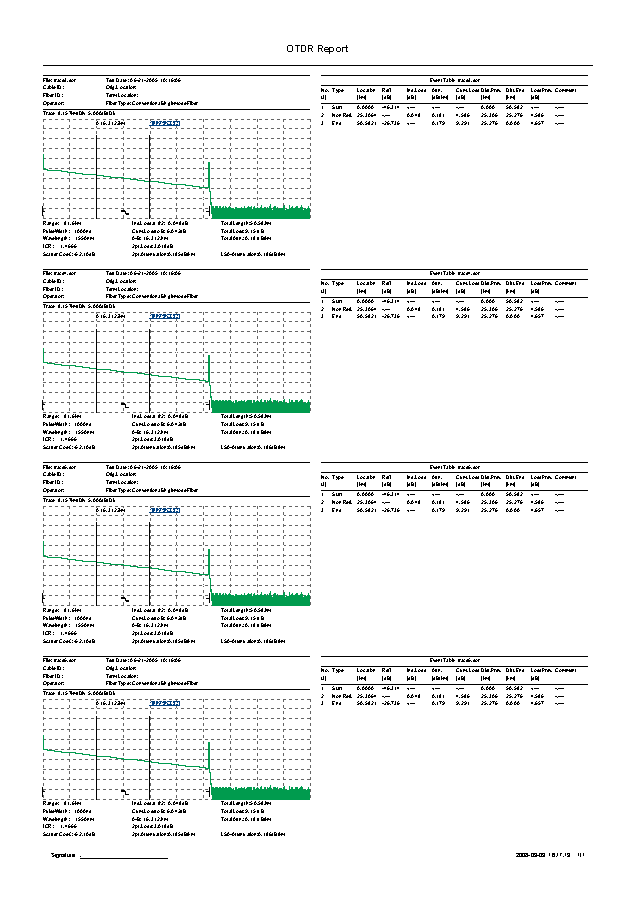

    9 Link Image Software piece 1

  • Main Equipment Ordering Information
    General Configuration Model Name Description
    SUN-OT5200-S2B OTDR Platform SM 1310/1550nm, dynamic Range: 45/43Db, FC/UPC port; including VFL function
    SUN-OT5200-S3A-PL OTDR Platform SM 1310/1550/1625nm, dynamic Range: 42/41/40dB, FC/UPC port; including VFL, In-Line test and through Splitter test
    SUN-OT5200-SM4A OTDR Platform SM&MM 850/1300/1310/1550nm, dynamic Range: 23/36/38/36dB, FC/UPC port; including VFL function
