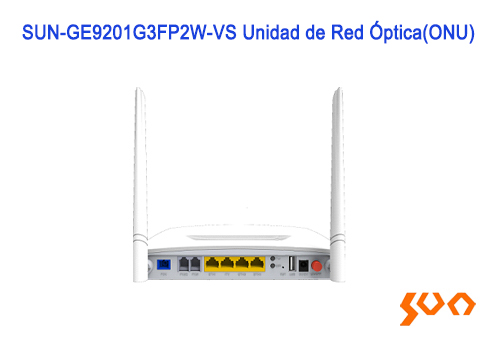

SUN-GE9201G3FP2W-VS Optical Network Unit (ONU)

Posición: La página inicial > Productos > xPON > Soluciones EPON

Modelo: SUN-GE9201G3FP2W-VS

1xSC/APC optical port, 1x10/100/1000M, 3x10/100M RJ45 ports and 2xVoIP POTS ports

Características

Compliant with IEEE802.3ah Standard
Up to 20KM transmission distance
VoIP function
802.11 n/b/g Wi-Fi
Data encryption and group broadcasting
Broadcasting storm resistance function
VLAN division
Port isolation between different ports
ACL and SNMP to configure data packet filter flexibly
Dynamic Bandwidth Allocation (DBA)
Various LLID configuration and single LLID configuration
Software online upgrading
EMS network management based on SNMP and convenient for maintenance

Descripción
Especificaciones
Información sobre pedidos
Aplicación
Preguntas
Video Products

　Sun Telecom's SUN-GE9201G3FP2W-VS optical network unit (ONU) is one of the EPON products used in user side and designed to meet the requirements of the broadband access network. This ONU has 1xSC/APC optical port, 1x10/100/1000M, 3x10/100M RJ45 ports and 2xVoIP POTS ports in compliance with standards IEEE EPON. It provides high-speed Internet access, voice and Wi-Fi service.

Specifications

Parameters	Specification
Rate (Gbps)	Uplink: 1.244 Downlink: 1.244
Optical Output Power (dBm)	-1~4
Receiving Sensitivity (dBm)	-27
Receiving Saturability (dBm)	-3
PON Interface	1xSC/UPC optical port
Data Interface	1x10/100/1000M and 3x10/100M RJ45 ports
POTS Interface	2xVoIP ports
Power Supply	External power adapter, 12V/1A
Power Consumption (W)	<7
Working Temperature (ºC)	0~50
Humidity (%)	10~90, no condensing
Dimensions (mm)	205(L) x 140(W)x 37(H)
Weight (g)	340

Standard Accessories

No.	Product	Unit	Quantity
1	Optical Network Unit (ONU)	set	1
2	Power Adapter	set	1
3	UTP Patch Cord	piece	1

Model	Name	Description
SUN-GE9201G3FP2W -VS	Optical Network Unit (ONU)	1 port of SC/UPC, 1 port of 10/100/1000M, 3 ports of 10/100M RJ45 and 2 ports of VoIP POTS; With Wi-Fi; External power supply: AC100~240V to DC12V power adapter

Other Options of ONUs

Model	Name	Description
SUN-GE9204GP2RW-VS	Optical Network Unit (ONU)	1 port of SC/APC, 4 ports of 10/100/1000M RJ45, 2 ports of VoIP POTS and 1 port of CATV Threaded F-female (British); With Wi-Fi; External power supply: AC100~240V to DC12V power adapter
SUN-GE9201H(Z)G-VS	Optical Network Unit (ONU)	1 port of SC/UPC and 1 port of 10/100/1000M RJ45; External power supply: AC100~240V to DC12V power adapter
SUN-GE9201GW-VS	Optical Network Unit (ONU)	1 port of SC/UPC,1 port of 10/100/1000M RJ45; With Wi-Fi; External power supply: AC100~240V to DC12V power adapter

● FTTH access networks
● Telecommunication networks
● Local Area Networks
